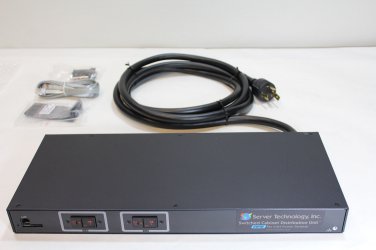

The Server Technology® Switched PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® technology provides accurate measurement of current (billing-grade), voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The Switched “Master” PDU can be connected to a Switched “Link” PDU to extend the network access to the redundant or secondary power feed.InputsInput Voltage: 120Input Plug: NEMA L5-30PInput Current: 30Input Current Rated: 24Input Power Capacity: 2.8 kVAOutputsConnector: (8) x NEMA 5-20RNorth American Rating (NEMA5-20R): ≤ 16A @120V L-N (20A Peak)PhysicalDimensions: 1.75 (45.0 mm) tall x17.2 (437.0 mm) wide x 7.0 (178.0 mm) deepTitleSERVER TECHNOLOGY Switched PDU CW-8H1B413 1.9kW-2.8kW (8) 5-20R outletsConditionNew, open box (actual images)ContentPDU unit, accessoriesManufacturerSERVER TECHNOLOGYModelCW-8H1B413SKUPIEV005 #1092_500_501http://www.compeve.com/LISTING_IMAGES/Electrical_Power_Appliances/PDU/Server_technology/CW-8H1B413/ADTI0000282_1.jpghttp://www.compeve.com/LISTING_IMAGES/Electrical_Power_Appliances/PDU/Server_technology/CW-8H1B413/ADTI0000282_2.jpghttp://www.compeve.com/LISTING_IMAGES/Electrical_Power_Appliances/PDU/Server_technology/CW-8H1B413/ADTI0000282_3.jpg
